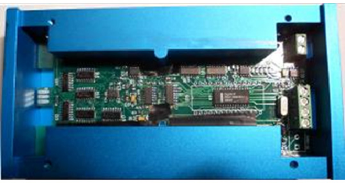

DigiO3 Wall Mounted Ozone / Multi-parameter Sensor |
|
* If inlet gas is Air, Oxygen & Ozone Concentration measurement must be taken at Flow Rate of less than 10 LPM
|
|
Ozone (±0.1%), Oxygen (±1.5%), Pressure (±0.5%), Standard Flow Rate (±0.2 SLPM), Ozone production (±2%), O2 & O3 Temperature (±0.2°C) A modern breakthrough in Digital Signal processing, DigiO3 features Ultrasonic Ozone & Oxygen sensing technology. Manufactured to prevent oxidation, DigiO3 features a virtually unlimited longevity and no need for factory calibrations. There is no warm-up time, no dependencies on pressure and temperature and no mechanical failures.
Measured Parameters: Concentration: Ozone & Oxygen concentrations within the respective O3 & O2 sensors. Ozone production : In units of g/hr. Flow Rate & Pressure: O2 Standard Flow Rate & Pressure. Temperature: O3 & O2 Gas Temperature. Outputs: LCD, 4—20mA, 0 to 5V, RS-232
|
|
Specifications:
|
|
Dimensions |
5.5” x 4” x 1.25” |
|
Weight |
570g |
|
Power |
Unregulated 9 - 30V DC, 18mA |
|
Gas Ports |
Female 1/8 NPT |
|
Accuracy |
· Ozone concentration (±0.1%) by weight · Ozone Production (±2%) · Oxygen (±1.5%)* · Flow Rate (±0.2SLPM)* · Pressure (±0.5%FS) · Temperature (±0.2°C)
|
|
Range |
Ozone: 0-30% by weight; 0 – 476 g/nm3 Oxygen: 20.8%* - 100% Flow: 0 - 100 slpm at 80 psia, 20°C; 0 - 20 slpm at 15 psia, 20°C Pressure: 0 – 85 psig O2, O3 Temperature: -45 to +70°C |
|
Direction of Flow |
Oxygen, Ozone – Unidirectional |
|
Survival Temperature range |
-85 to +85°C |
|
Outputs |
Digital: RS-232 Analog: 4-20mA, 0-5V DC linearly proportional to 0 to 20% O3 |
|
Display |
LCD |
|
O2 Alarm |
Sinks up to 20mA to GND if O2 concentration drops below 87% |
